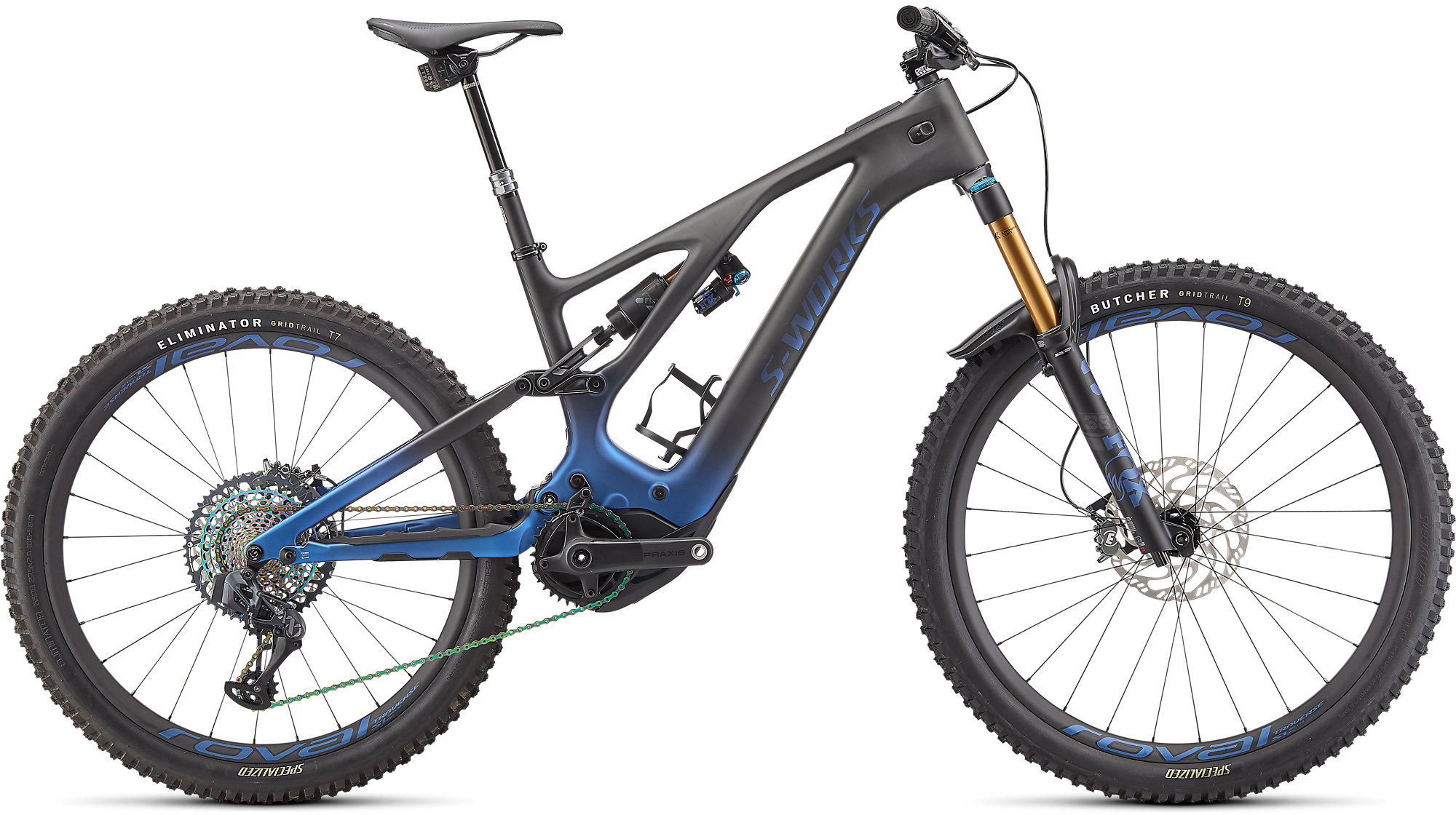

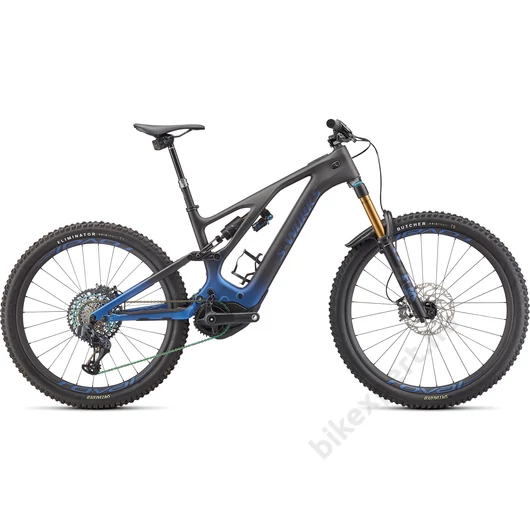

S-Works Turbo Levo Technical Specifications
COCKPIT
Stem
Deity, 35.0mm
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity, Knuckleduster, Black
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
BRAKES
Front Brake
Magura MT7, 4-piston caliper, hydraulic disc, 203mm rotor
Rear Brake
Magura MT7, 4-piston caliper, hydraulic disc, 203mm rotor
DRIVETRAIN
Rear Derailleur
SRAM XX1 Eagle AXS
Cassette
Sram XG-1299, 12-Speed, 10-52t
Shift Levers
SRAM Eagle AXS Rocker Paddle
Chain
SRAM XX1 Eagle, 12-speed
Crankset
Praxis Carbon M30, custom offset, 160mm
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34T, steel
WHEELS
Inner Tubes
Standard, Presta Valve
Front Wheel
Traverse SL 29
Rear Wheel
Traverse SL 27.5
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
E-BIKE
Motor
Specialized Turbo Full Power System 2.2 Motor
Charger
Custom charger, 42V4A w/ Rosenberger plug
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Wiring Harness
Custom Specialized wiring harness
FRAMESET
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Fork
FOX FLOAT 38 Factory 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel, Kashima
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT X2 Factory, LSC, LSR, 2-position lever, 55x210mm, Kashima
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 183cm |
| minimum_testmagassag | 173cm |
| Motor maximális nyomatéka | 90 |
Paraméterek
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 183cm |
| minimum_testmagassag | 173cm |
| Motor maximális nyomatéka | 90 |
