Leírás és Paraméterek

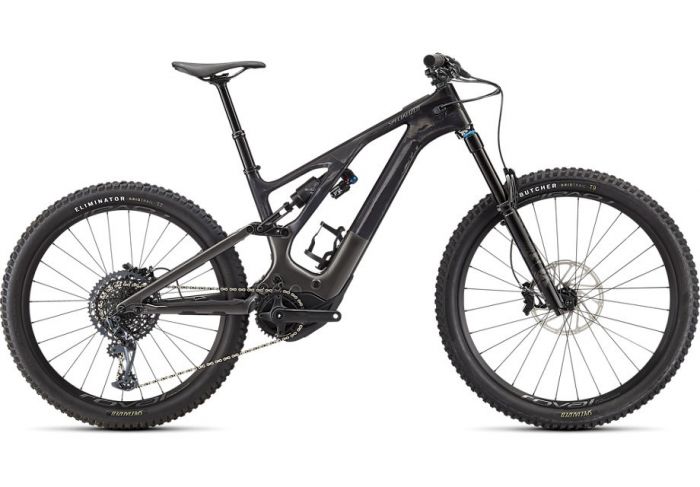

Turbo Levo Expert Technical Specifications
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Deity, Knuckleduster, Black
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
BRAKES
Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm
Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Rear Derailleur
Sram X01 Eagle, 12-speed
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Cassette
SRAM XG-1275, 12-speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
Praxis forged M30, custom offset, 160mm
Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
WHEELS
Inner Tubes
Standard, Presta Valve
Front Wheel
Traverse 29
Rear Wheel
Traverse 27.5
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Fork
FOX FLOAT 38 Performance Elite 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel
E-BIKE
Motor
Specialized Turbo Full Power System 2.2 Motor
Charger
Custom charger, 42V4A w/ Rosenberger plug
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Wiring Harness
Custom Specialized wiring harness
Suspension
Rear Shock
S1: Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune, S2-S6: FOX FLOAT X2 Performance Elite, LSC, LSR, 2-position lever, 55x210mm
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 178cm |
| minimum_testmagassag | 168cm |
| Motor maximális nyomatéka | 90 |
Paraméterek
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 178cm |
| minimum_testmagassag | 168cm |
| Motor maximális nyomatéka | 90 |
