Leírás és Paraméterek

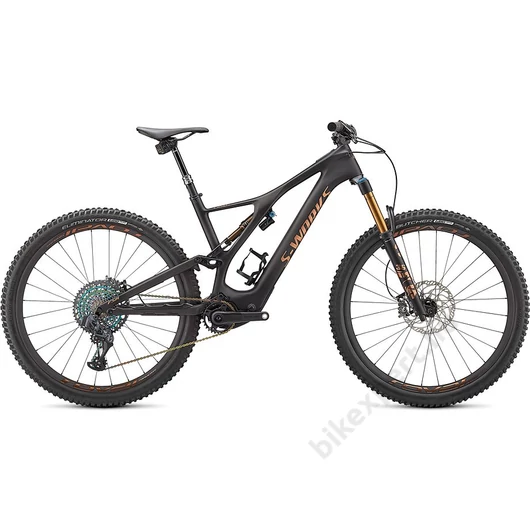

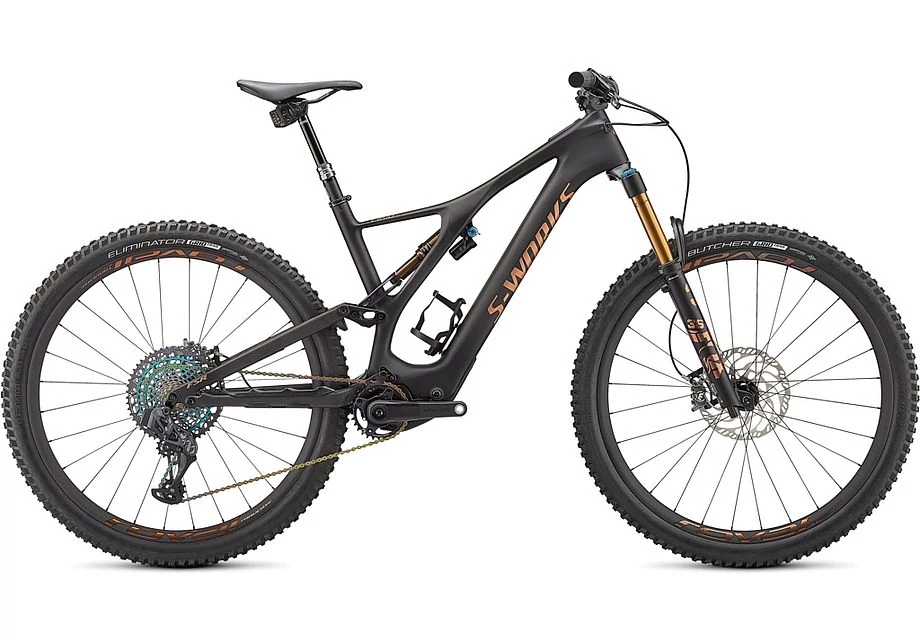

S-Works Turbo Levo SL Technical Specifications
Frameset
FRAME
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
SEAT BINDER
Specialized Ti-bolt-type, alloy, 38.6mm
FORK
Fox Float 36 Factory, Grip2 damper, 150mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle
Suspension
REAR SHOCK
Fox Float DPX2 Factory, 3- position adjustment, 52.5x210mm, Rx Trail Tune
Cockpit
GRIPS
Deity, Knuckleduster, Black
SEATPOST
RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm
STEM
Deity Copperhead, 35.0mm
HANDLEBARS
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm
SADDLE
Bridge, 155/143mm, Hollow Ti-rails
Drivetrain
REAR DERAILLEUR
SRAM XX1 Eagle AXS
SHIFT LEVERS
SRAM AXS Eagle Controller
CHAIN
SRAM XX1 Eagle
CRANKSET
Praxis, carbon M30, custom offset
CHAINRINGS
SRAM X-Sync Eagle, 94 BCD, 30T
Wheels
RIMS
Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
FRONT HUB
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
REAR HUB
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
SPOKES
DT Competition Race
FRONT TIRE
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
REAR TIRE
Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
INNER TUBES
Standard, Presta valve
REAR WHEEL
FRONT WHEEL
Brakes
FRONT BRAKE
Magura MT7 with custom Loic lever blade, 203mm rotor
REAR BRAKE
Magura MT7 with custom Loic lever blade, 203mm rotor
Accessories
PEDALS
E-Bike
Battery
Specialized SL1-320, fully integrated, 320Wh
Wiring Harness
Custom Specialized wiring harness w/ chargeport
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
Specialized SL 1.1, custom lightweight motor
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 200cm |
| minimum_testmagassag | 150cm |
| Motor maximális nyomatéka | 35 |
Paraméterek
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 200cm |
| minimum_testmagassag | 150cm |
| Motor maximális nyomatéka | 35 |
Leírás
S-Works Turbo Levo SL Technical Specifications
Frameset
FRAME
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
SEAT BINDER
Specialized Ti-bolt-type, alloy, 38.6mm
FORK
Fox Float 36 Factory, Grip2 damper, 150mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle
Suspension
REAR SHOCK
Fox Float DPX2 Factory, 3- position adjustment, 52.5x210mm, Rx Trail Tune
Cockpit
GRIPS
Deity, Knuckleduster, Black
SEATPOST
RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm
STEM
Deity Copperhead, 35.0mm
HANDLEBARS
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm
SADDLE
Bridge, 155/143mm, Hollow Ti-rails
Drivetrain
REAR DERAILLEUR
SRAM XX1 Eagle AXS
SHIFT LEVERS
SRAM AXS Eagle Controller
CHAIN
SRAM XX1 Eagle
CRANKSET
Praxis, carbon M30, custom offset
CHAINRINGS
SRAM X-Sync Eagle, 94 BCD, 30T
Wheels
RIMS
Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
FRONT HUB
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
REAR HUB
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
SPOKES
DT Competition Race
FRONT TIRE
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
REAR TIRE
Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
INNER TUBES
Standard, Presta valve
REAR WHEEL
FRONT WHEEL
Brakes
FRONT BRAKE
Magura MT7 with custom Loic lever blade, 203mm rotor
REAR BRAKE
Magura MT7 with custom Loic lever blade, 203mm rotor
Accessories
PEDALS
E-Bike
Battery
Specialized SL1-320, fully integrated, 320Wh
Wiring Harness
Custom Specialized wiring harness w/ chargeport
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
Specialized SL 1.1, custom lightweight motor
