Leírás és Paraméterek

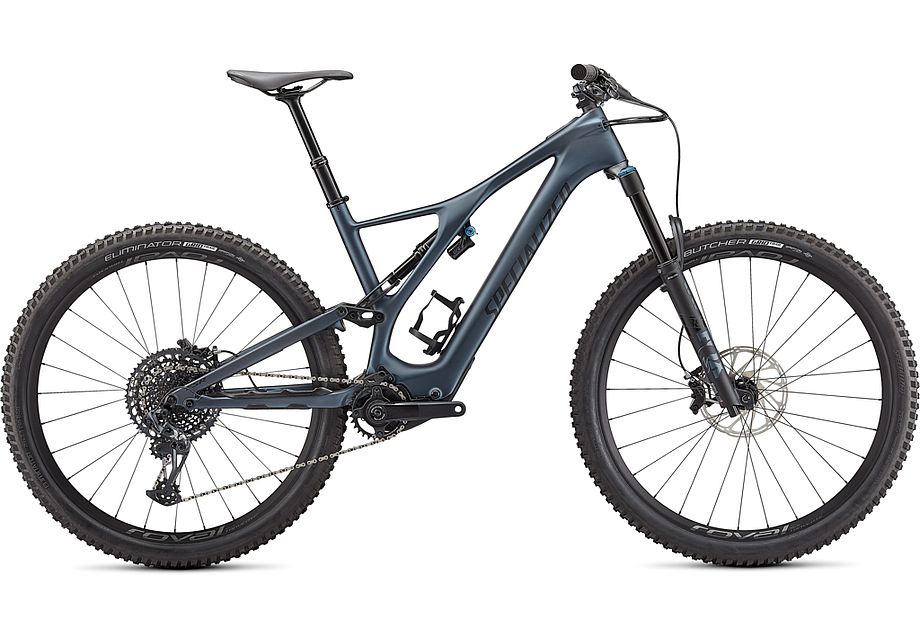

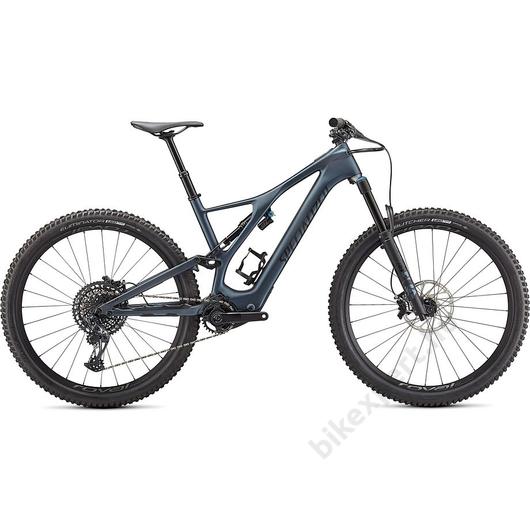

Turbo Levo SL Expert Carbon Technical Specifications
E-BIKE
Battery: Specialized SL1-320, fully integrated, 320Wh
UI/Remote: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Charger: Custom charger, 48V System w/ SL system charger plug
Wiring Harness: Custom Specialized wiring harness w/ chargeport
Motor: Specialized SL 1.1, custom lightweight motor
FRAMESET
Frame: FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork: Fox Float 36, Performance Elite, Grip2 damper, 150mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle
Seat Binder: Specialized bolt-type, alloy, 38.6mm
Suspension
Rear Shock: Fox Float DPX2 Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune
COCKPIT
Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips: Deity, Knuckleduster, Black
Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
BRAKES
Front Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Rear Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Rear Derailleur: Sram X01 Eagle, 12-speed
Shift Levers: SRAM X01 Eagle, trigger, 12-speed
Cassette: SRAM XG-1275, 12-speed, 10-52t
Chain: SRAM GX Eagle, 12-speed
Crankset: Praxis, forged M30, custom offset
Chainrings: SRAM X-Sync Eagle, 94 BCD, 30T
ACCESSORIES
Pedals: No
WHEELS
Front Wheel
Rear Wheel
Rims: Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub: Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub: Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes: DT Swiss Competition Race
Front Tire: Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Inner Tubes: Standard, Presta valve
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 200cm |
| minimum_testmagassag | 150cm |
| Motor maximális nyomatéka | 35 |
Paraméterek
| Felhasználási terület | XCO - Trail |
| maximum_testmagassag | 200cm |
| minimum_testmagassag | 150cm |
| Motor maximális nyomatéka | 35 |
